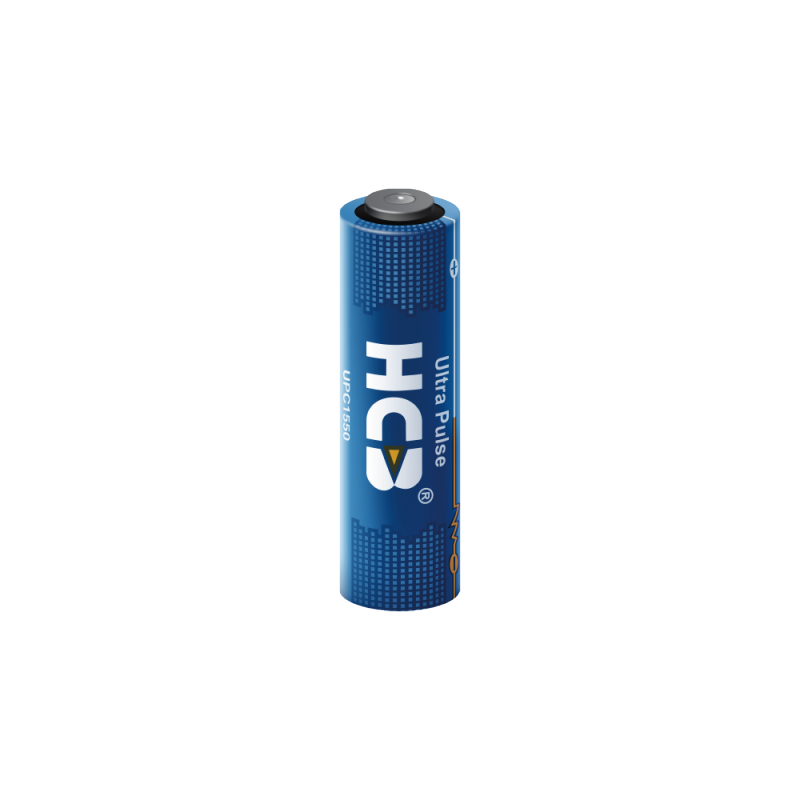

UPC1550 Ultra Pulse Capacitor

Name: Ultra Pulse Capacitor
Brand: www.hcbbattery.com
SKU: UPC Battery Capacitor UPC1550
Availability: InStock
Rating: 5 (1 reviews)

Overview

HCB offers high quality UPC1550 Ultra Pulse Capacitor to clients all over the world.

Ultra Pulse Capacitors UPC1550 Capaticy at 3.67V 560As Hermetically Sealed Up to 5A pulse. Get Our Catalog Now!

QUOTE

PDF

Description Specification Drawing

Description

Product Details of UPC1550 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Hermetically Sealed Type Ultra Pulse Capacitors UPC1550 Capaticy at 3.67V 560As Hermetically Sealed Up to 5A pulse.

Advantage of UPC1550 Ultra Pulse Capacitor Cylindrical Battery Capacitor

The EU battery pack can output high capacity and high pulse current
High operating voltage: 2.0~3.75V
Wide operating temperature range: -40°C~90°C
Leakage current: 1~15µA
Long cycle life

Ultra Pulse Capacitor UPC1550

Place of Origin	PRC
Brand Name	HCB Ultra Pulse Capacitor
Certification	UN/CE/UL
Model Number	UPC1550

Specification

Specification of UPC1550 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Characteristics	Electrical characteristics(23±2°C)	(23±2°C)
Electrical characteristics	Capacity at 3.67V	560As
	Cut-off Voltage	2.5V
	Maximum Continuous Discharge Current	2.0A
	Maximum Pulse Discharge Current(1s)	5.0A
	Pulse Discharge Voltage (-25℃ 750mA @10s）	≥3.2V
	Maximum Charge Voltage	3.95V
	Maximum Charge Current	200mA
	Internal Resistance(RT@1kHz)	≤100mΩ
	Leakage Current@RT	3uA
	Leakage Current@80℃	15uA
	Operating temperature range	-40℃~+85℃
Physical characteristics	Diameter	15.1mm
	Height	51.0mm
	Typical weight	21.5g
