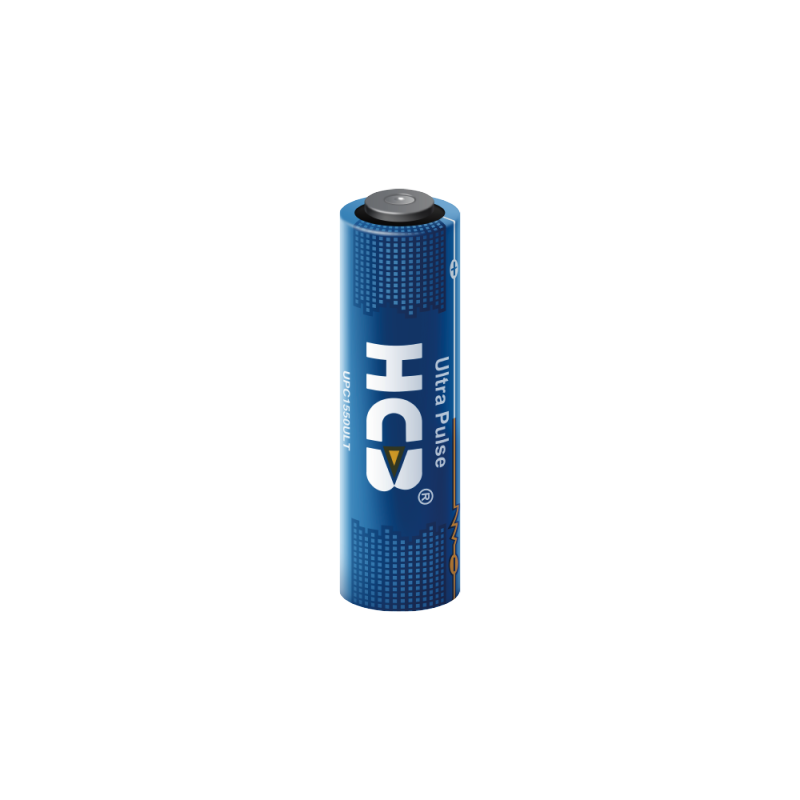

UPC1550-ULT Ultra Pulse Capacitor

Name: Ultra Pulse Capacitor
Brand: www.hcbbattery.com
SKU: UPC1550-ULT
Availability: InStock
Rating: 5 (1 reviews)

Overview

HCB offers high quality UPC1550ULT Ultra Pulse Capacitor to clients all over the world.

Ultra Pulse Capacitors UPC1550ULT Capaticy at 3.67V 560As Hermetically Sealed Up to5A pulse. Get Our Catalog Now!

Description Specification Drawing

Description

Product Details of UPC1550ULT Ultra Pulse Capacitor Cylindrical Battery Capacitor

Hermetically Sealed Type Ultra Pulse Capacitors UPC1550ULT Capaticy at 3.67V 560As Hermetically Sealed Up to 5A pulse.

Advantage of UPC1550ULT Ultra Pulse Capacitor Cylindrical Battery Capacitor

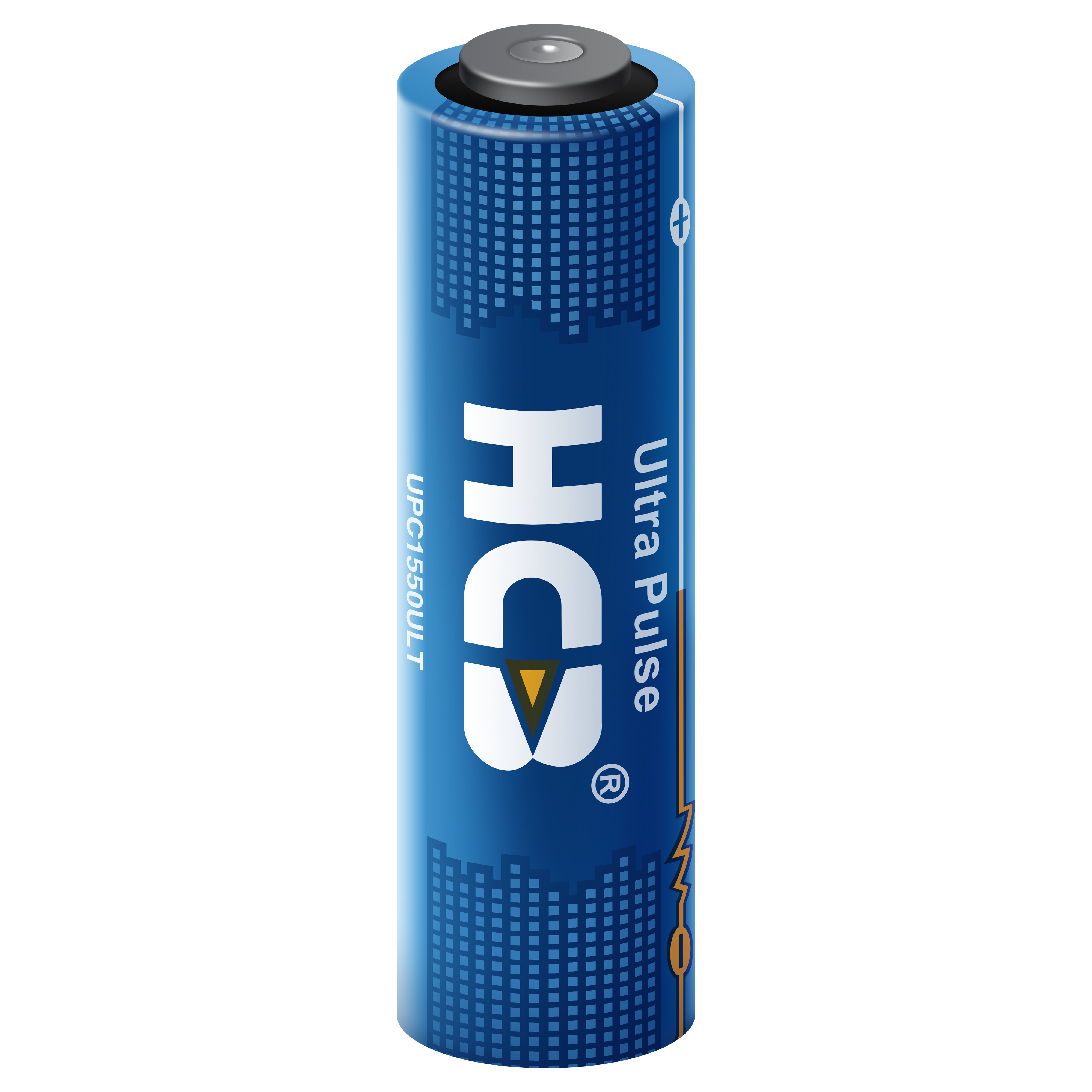

Ultra Pulse Capacitor UPC1550ULT

Specification

Specification of UPC1550ULT Ultra Pulse Capacitor Cylindrical Battery Capacitor

Characteristics	Electrical characteristics(23±2°C)	(23±2°C)
Electrical characteristics	Capacity at 3.67V	560As
	Cut-off Voltage	2.5V
	Maximum Continuous Discharge Current	2.0A
	Maximum Pulse Discharge Current(1s)	5.0A
	Pulse Discharge Voltage (-25℃ 350mA @10s）	≥3.3V
	Maximum Charge Voltage	3.95V
	Maximum Charge Current	200mA
	Internal Resistance(RT@1kHz)	≤100mΩ
	Leakage Current@RT	3uA
	Leakage Current@80℃	15uA
	Operating temperature range	-40℃~+85℃
Physical characteristics	Diameter	15.1mm
	Height	51.0mm
	Typical weight	21.5g
