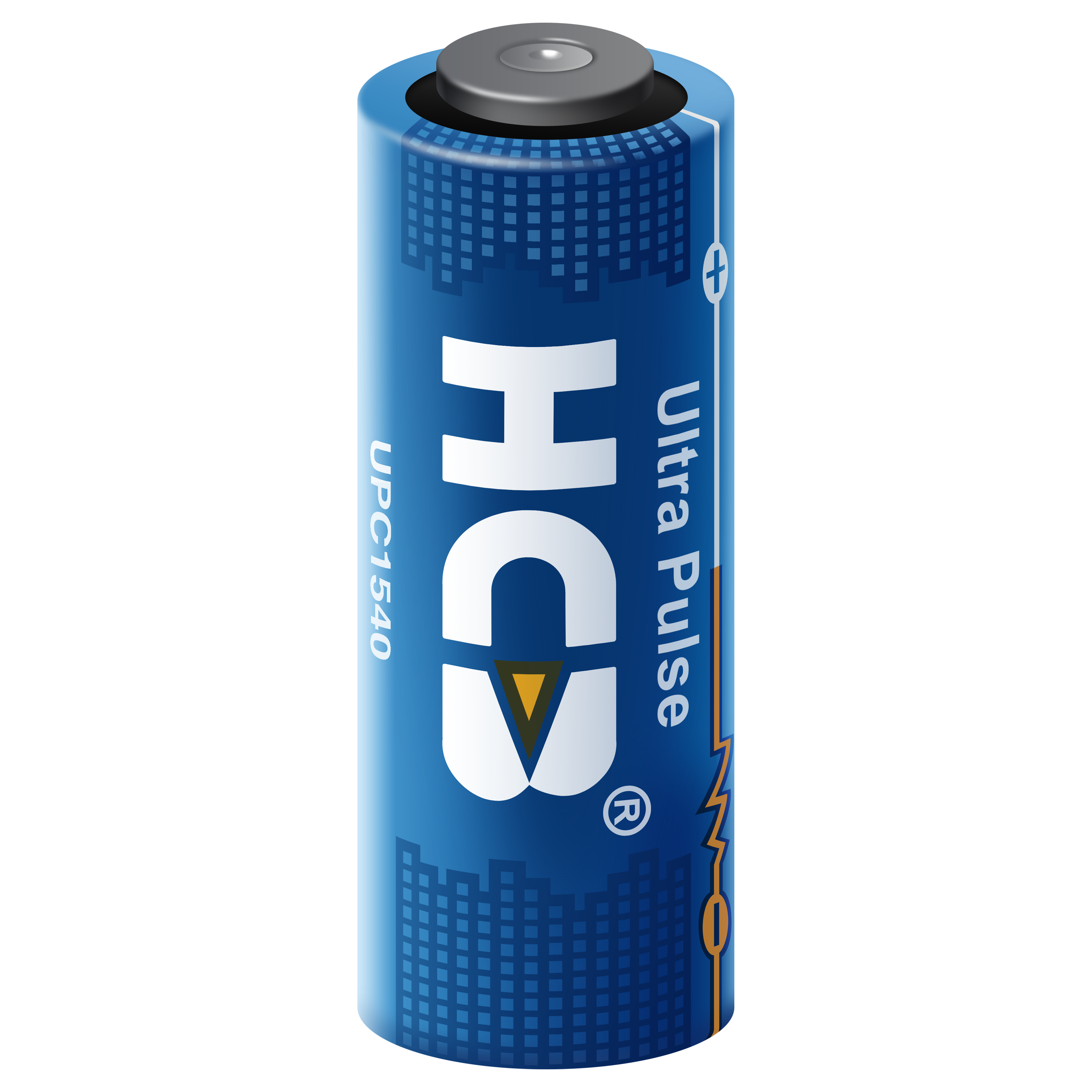

UPC1540 Ultra Pulse Capacitor

Name: Ultra Pulse Capacitor
Brand: www.hcbbattery.com
SKU: UPC1540
Availability: InStock
Rating: 5 (1 reviews)

Overview

HCB offers high quality UPC1540 Ultra Pulse Capacitor to clients all over the world.

Ultra Pulse Capacitors UPC1540 Capaticy at 3.67V 450As Hermetically Sealed Up to 4A pulse. Get Our Catalog Now!

Description Specification Drawing

Description

Product Details of UPC1540 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Hermetically Sealed Type Ultra Pulse Capacitors UPC1540 Capaticy at 3.67V 450As Hermetically Sealed Up to 4A pulse.

Advantage of UPC1540 Ultra Pulse Capacitor Cylindrical Battery Capacitor

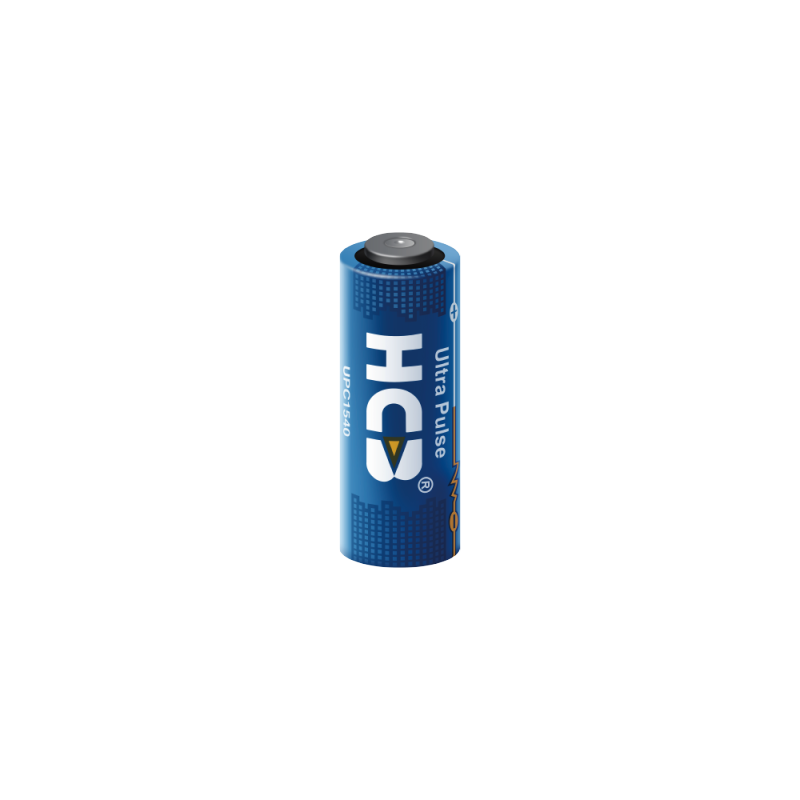

Ultra Pulse Capacitor UPC1540

Specification

Specification of UPC1540 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Characteristics	Electrical characteristics(23±2°C)	(23±2°C)
Electrical characteristics	Capacity at 3.67V	450As
	Cut-off Voltage	2.5V
	Maximum Continuous Discharge Current	1.0A
	Maximum Pulse Discharge Current(1s)	4.0A
	Pulse Discharge Voltage (-25℃ 600mA @10s）	≥3.2V
	Maximum Charge Voltage	3.95V
	Maximum Charge Current	160mA
	Internal Resistance(RT@1kHz)	≤120mΩ
	Leakage Current@RT	2.8uA
	Leakage Current@80℃	14uA
	Operating temperature range	-40℃~+85℃

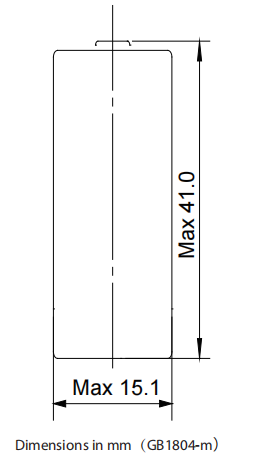

Physical characteristics	Diameter	15.1mm
	Height	41.0mm
	Typical weight	17.5g
