UPC1530 Ultra Pulse Capacitor

Name: Ultra Pulse Capacitor
Brand: www.hcbbattery.com
SKU: UPC1530
Availability: InStock
Rating: 5 (1 reviews)

Overview

HCB offers high quality UPC1530 Ultra Pulse Capacitor to clients all over the world.

Ultra Pulse Capacitors UPC1530 Capaticy at 3.67V 250As Hermetically Sealed Up to 3A pulse. Get Our Catalog Now!

Description Specification Drawing

Description

Product Details of UPC1530 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Hermetically Sealed Type Ultra Pulse Capacitors UPC1530 Capaticy at 3.67V 250As Hermetically Sealed Up to 3A pulse.

Advantage of UPC1530 Ultra Pulse Capacitor Cylindrical Battery Capacitor

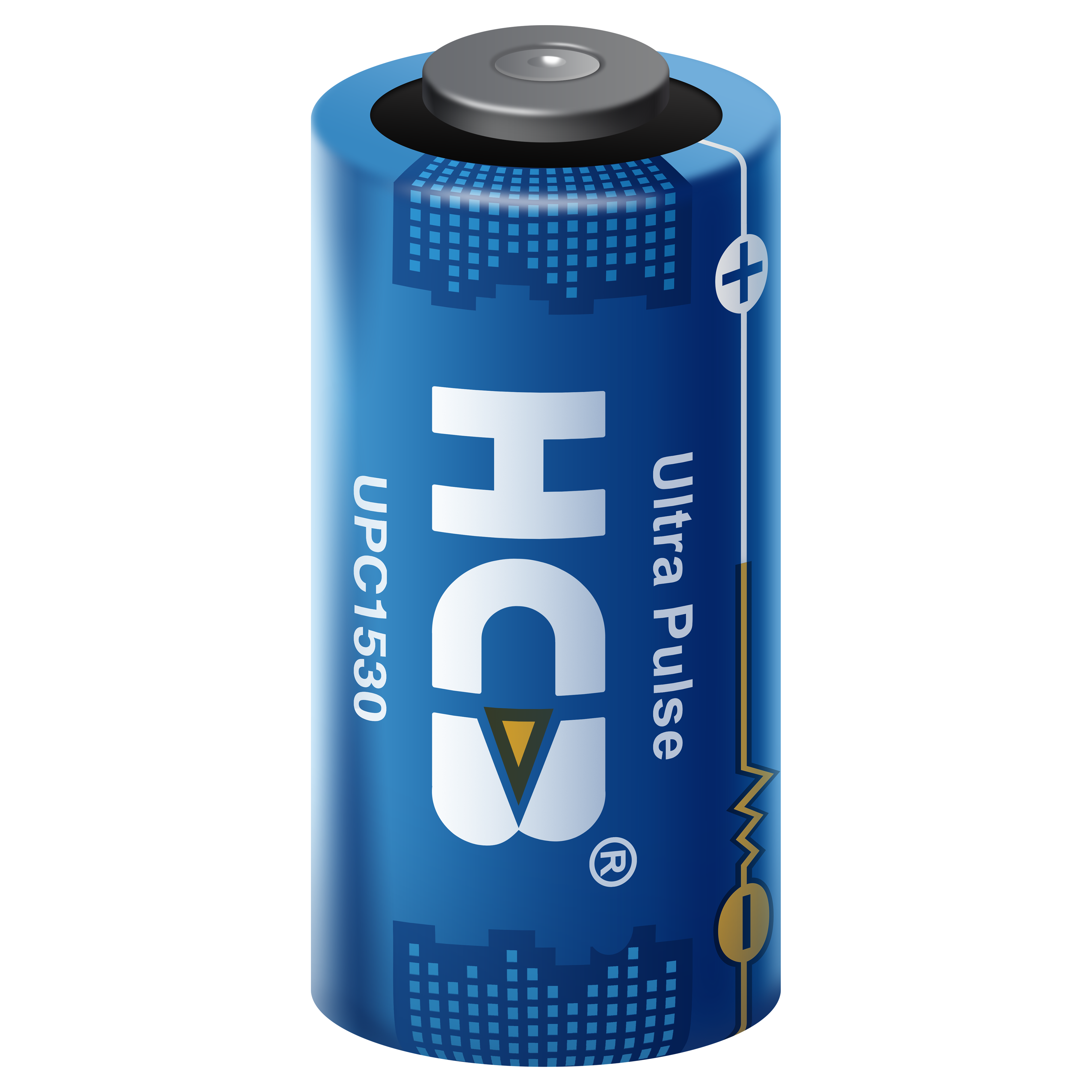

Ultra Pulse Capacitor UPC1530

Specification

Specification of UPC1530 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Characteristics	Electrical characteristics(23±2°C)	(23±2°C)
Electrical characteristics	Capacity at 3.67V	250As
	Cut-off Voltage	2.5V
	Maximum Continuous Discharge Current	0.75A
	Maximum Pulse Discharge Current(1s)	3.0A
	Pulse Discharge Voltage (-25℃ 350mA @10s）	≥3.2V
	Maximum Charge Voltage	3.95V
	Maximum Charge Current	90mA
	Internal Resistance(RT@1kHz)	≤140mΩ
	Leakage Current@RT	1.8uA
	Leakage Current@80℃	9uA
	Operating temperature range	-40℃~+85℃

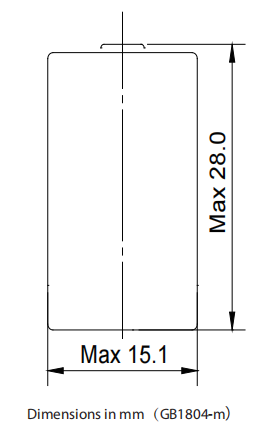

Physical characteristics	Diameter	15.1mm
	Height	28.0mm
	Typical weight	10.3g
