| Place of Origin | PRC |

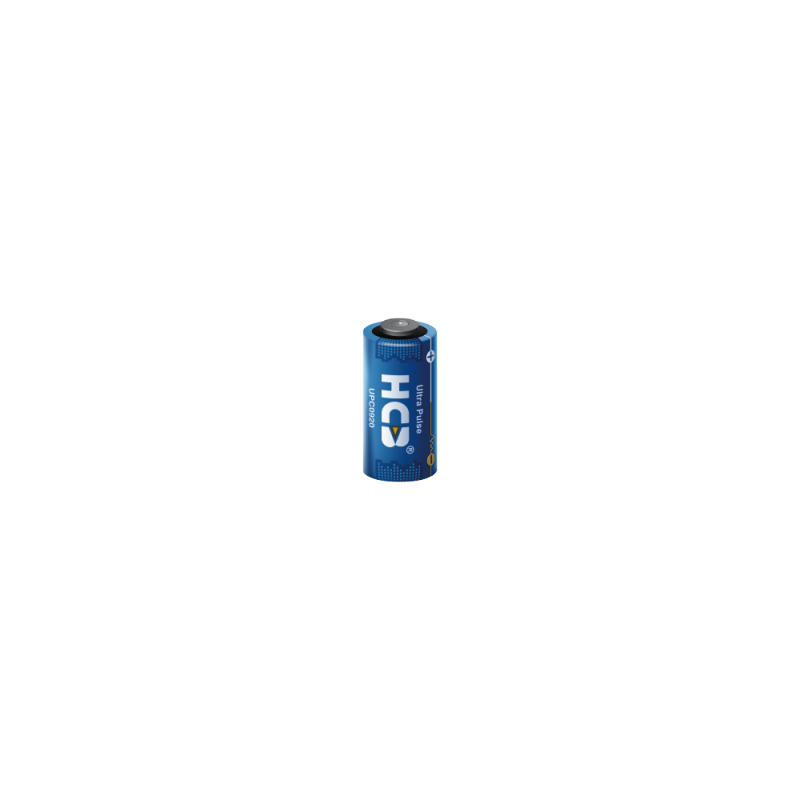

| Brand Name | HCB Ultra Pulse Capacitor |
| Certification | UN/CE/UL |
| Model Number | UPC0920 |
| Characteristics | Electrical characteristics(23±2°C) | (23±2°C) |
| Electrical characteristics （Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. When using batteries at temperature exceeding -20℃~+40℃.Consult HCB） |
Capacity at 3.67V | 45As |
| Cut-off Voltage | 2.5V | |
| Maximum continuous current | 30mA | |
| Maximum Continuous Discharge Current | 300mA | |
| Maximum Pulse Discharge Current(1s) | 600mA | |
| Maximum Charge Voltage | 4.0V | |
| Standard Charge Voltage | 3.67V | |
| Maximum Charge Current | 30mA | |
| Standard Charge Current | 10mA | |
| Internal Resistance(RT@1kHz) | ≤400mΩ | |
| For independent use | -40℃~+90℃ | |
| Physical characteristics | Diameter | 9.3mm |
| Height | 21.0mm | |
| Typical weight | 4.2g |
