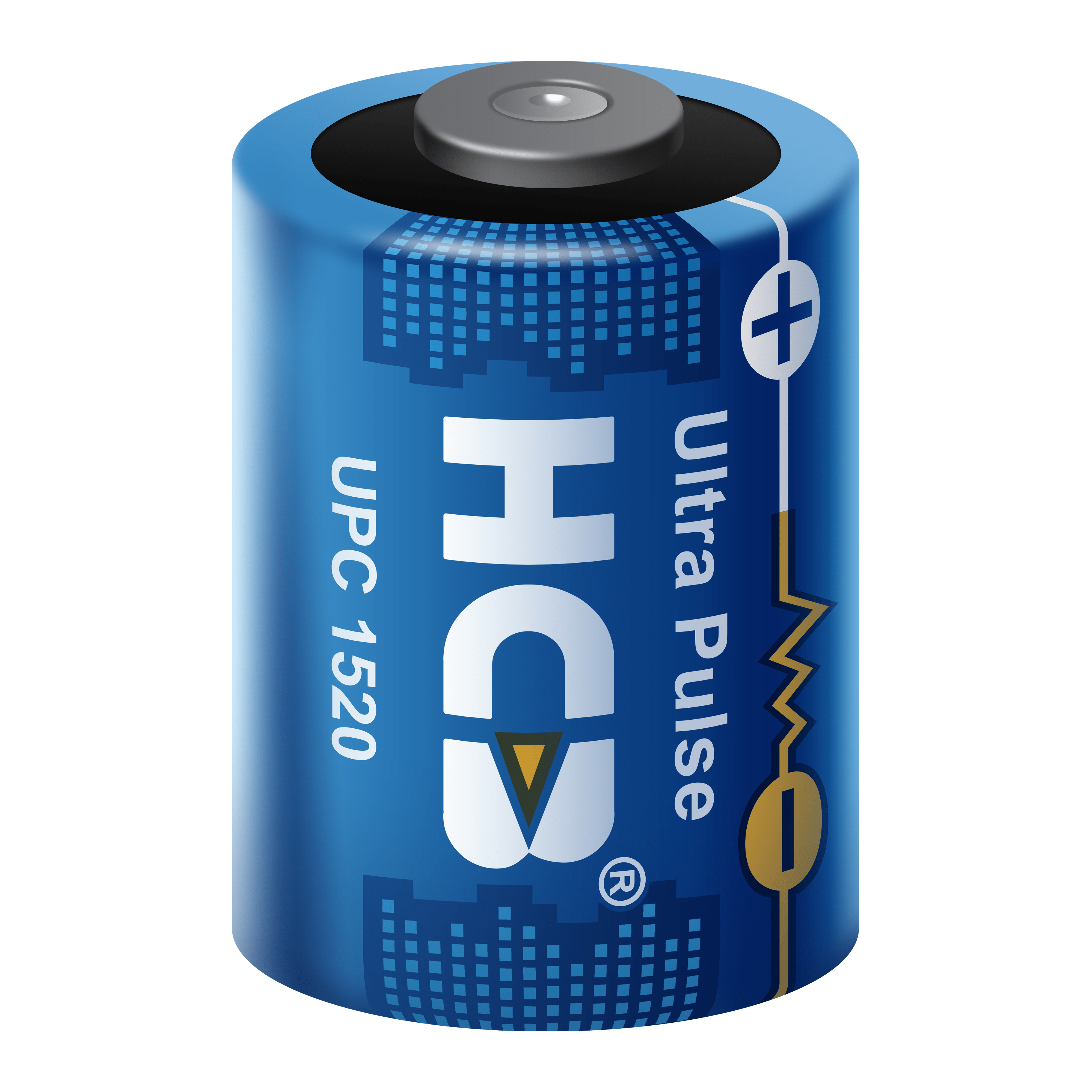

Ultra Pulse Capacitor UPC1520

Name: Ultra Pulse Capacitor
Brand: www.hcbbattery.com
SKU: UPC1520
Availability: InStock
Rating: 5 (1 reviews)

Overview

HCB offers high quality UPC1520 Ultra Pulse Capacitor to clients all over the world.

Ultra Pulse Capacitors UPC1520 Capaticy at 3.67V 140As Hermetically Sealed Up to 2A pulse. Get Our Catalog Now!

Description Specification Drawing

Description

Product Details of UPC1520 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Hermetically Sealed Type Ultra Pulse Capacitors UPC1520 Capaticy at 3.67V 140As Hermetically Sealed Up to 2A pulse.

Advantage of UPC1520 Ultra Pulse Capacitor Cylindrical Battery Capacitor

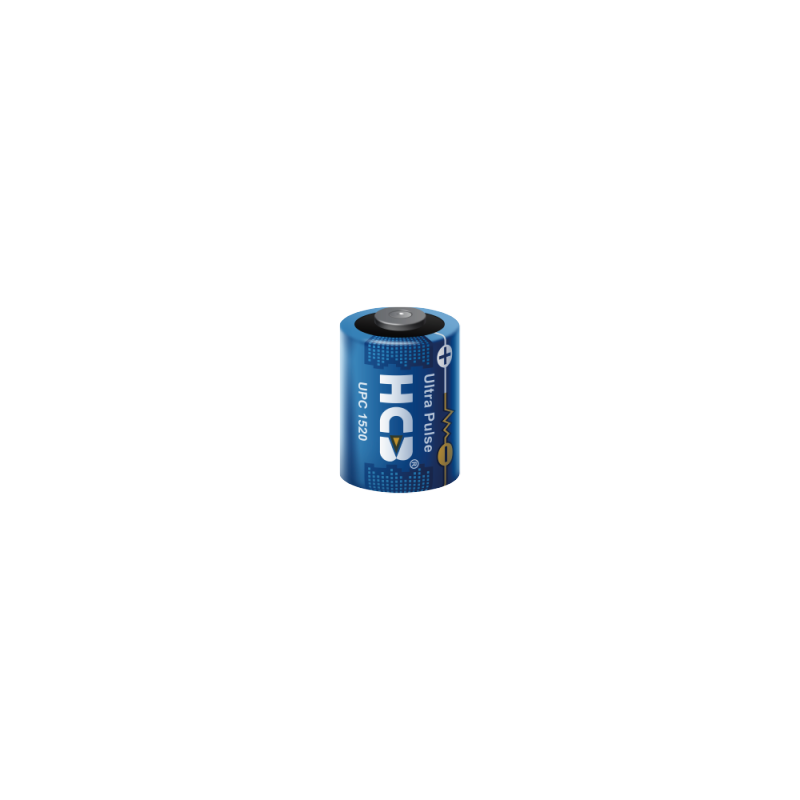

Ultra Pulse Capacitor UPC1520

Specification

Specification of UPC1520 Ultra Pulse Capacitor Cylindrical Battery Capacitor

Characteristics	Electrical characteristics(23±2°C)	(23±2°C)
Electrical characteristics	Capacity at 3.67V	140As
	at 3.90V	210As
	Cut-off Voltage	2.5V
	Maximum Continuous Discharge Current	0.5A
	Maximum Pulse Discharge Current(1s)	2.0A
	Pulse Discharge Voltage (-25℃ 350mA @10s）	≥3.1V
	Maximum Charge Voltage	3.95V
	Maximum Charge Current	50mA
	Internal Resistance(RT@1kHz)	≤150mΩ
	Leakage Current@RT	1uA
	Leakage Current@80℃	5uA
	Operating temperature range	-40℃~+85℃

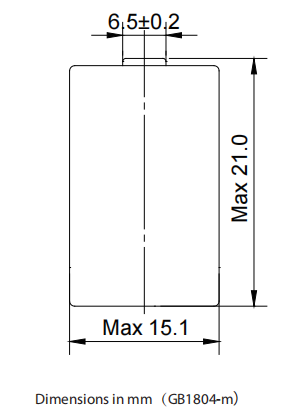

Physical characteristics	Diameter	15.1mm
	Height	21.0mm
	Typical weight	8.0g
