RCR17450

Overview
HCB offers high quality RCR17450 1000mAh Li-ion cylindrical battery 3.7V LI-ion battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of RCR17450 Li-ion Cylindrical Battery
Semi Sealed Type 1000mAh 3.7V Li-ion RCR17450 Lithium Ion Battery for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of RCR17450 Li-ion Cylindrical Battery
  • High energy density: 80~120Wh/kg
  • Cycle times ≥3000
  • Operating temperature range: -20°C~60°C
  • Self-discharge rate at room temperature ≤3%/monthly
Lithium ion Battery RCR17450 3.7V Lithium-ion Semi Sealed Type RCR17450
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number RCR17450
Specification
Specification of RCR123A Li-ion Cylindrical Battery
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 1000mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥800
Maximum Continuous Discharge Current 1000mA
Maximum Pulse Discharge Current 8000mA
Maximum Charge Current 1000mA
Internal Resistance(1kHz@RT) ≤100 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃

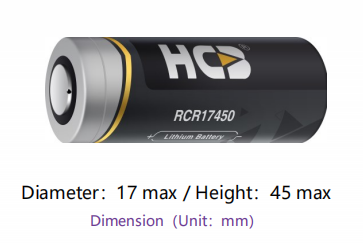

Drawing
Drawing of RCR17450 Li-ion Cylindrical Battery
