Lithium Manganese

Overview
HCB offers high quality RCR123A Li-ion cylindrical battery 3.7V LI-ion battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of RCR123A Li-ion Cylindrical Battery
Semi Sealed Type 650mAh 3.7V Li-ion RCR123A Lithium Ion Battery for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of RCR123A Li-ion Cylindrical Battery
  • High energy density: 80~120Wh/kg
  • Cycle times ≥3000
  • Operating temperature range: -20°C~60°C
  • Self-discharge rate at room temperature ≤3%/monthly
Lithium ion Battery RCR123A 3.7V Lithium-ion Semi Sealed Type RCR123A
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number RCR123A
Specification
Specification of RCR123A Li-ion Cylindrical Battery
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 650mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥800
Maximum Continuous Discharge Current 650mA
Maximum Pulse Discharge Current  5000mA
Maximum Charge Current 650mA
Internal Resistance(1kHz@RT) ≤100 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃

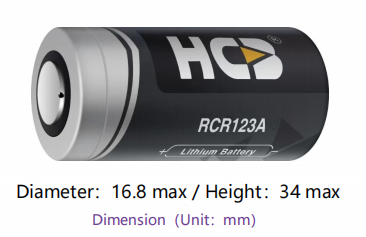

Drawing
Drawing of RCR123A Li-ion Cylindrical Battery
