HLM1550-LT HLM Li-ion Cylindrical Battery

Overview
HCB offers high quality HLM1550LT Li-ion cylindrical battery 3.7V LI-ion battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description

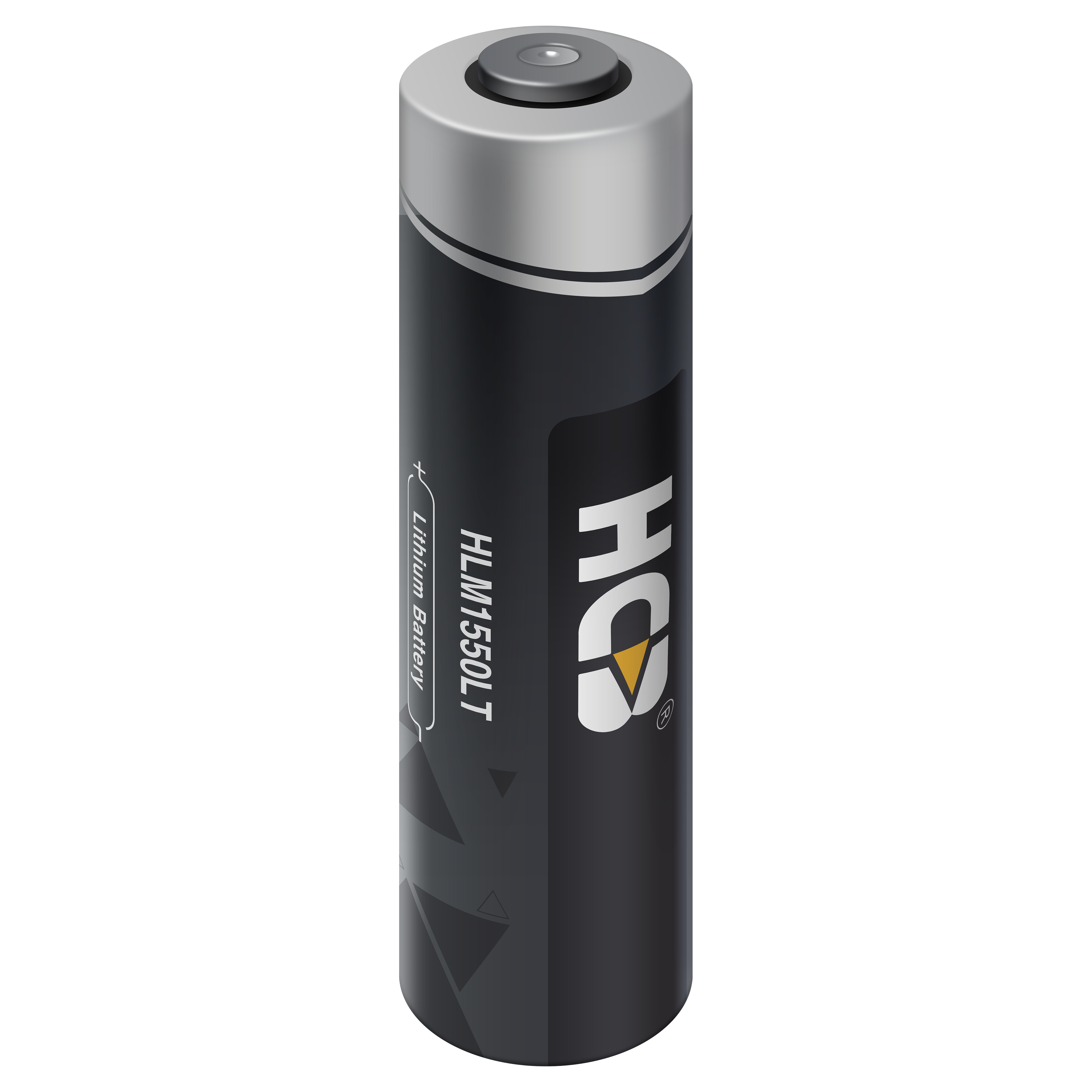

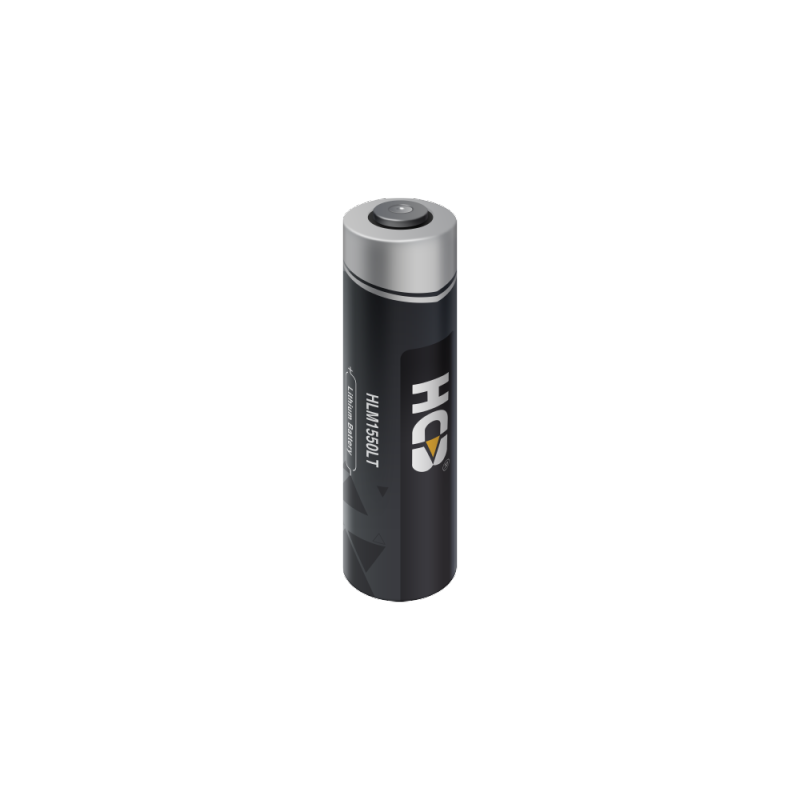

Product Details of HLM1550LT Li-ion Cylindrical Battery
Hermetic Sealed Type 500mAh 3.7V Li-ion HLM1550LT Lithium Ion Battery for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HLM1550LT Li-ion Cylindrical Battery
  • High energy density: 30~120Wh/kg
  • Cycle times ≥10000
  • Operating temperature range: -40°C~85°C
  • Self-discharge rate at room temperature ≤3%/monthly
Lithium ion Battery HLM1550LT 3.7V Lithium-ion Hermetic Sealed Type HLM1550LT
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HLM1550LT
Specification
Specification of HLM1550LT Li-ion Cylindrical Battery
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 500mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 5000mA
Maximum Pulse Discharge Current(@RT) 10000mA
Maximum Pulse Discharge Current(@-40℃) 3000mA
Maximum Charge Current 1500mA
Internal Resistance(1kHz@RT) ≤100 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature -40℃~+85℃
Discharge Temperature -40℃~+85℃
Drawing
Drawing of HLM1550LT Li-ion Cylindrical Battery
