HLM1540-LT HLM Li-ion Cylindrical Battery

Overview
HCB offers high quality HLM1540LT Li-ion cylindrical battery 3.7V LI-ion battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HLM1540LT Li-ion Cylindrical Battery
Hermetic Sealed Type 400mAh 3.7V Li-ion HLM1540LT Lithium Ion Battery for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HLM1540LT Li-ion Cylindrical Battery
  • High energy density: 30~120Wh/kg
  • Cycle times ≥10000
  • Operating temperature range: -40°C~85°C
  • Self-discharge rate at room temperature ≤3%/monthly
Lithium ion Battery HLM1540LT 3.7V Lithium-ion Hermetic Sealed Type HLM1540LT
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HLM1540LT
Specification
Specification of HLM1540LT Li-ion Cylindrical Battery
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 400mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 4000mA
Maximum Pulse Discharge Current(@RT) 8000mA
Maximum Pulse Discharge Current(@-40℃) 2400mA
Maximum Charge Current 1200mA
Internal Resistance(1kHz@RT) ≤120 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature -40℃~+85℃
Discharge Temperature -40℃~+85℃
Drawing

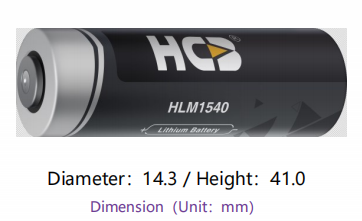

Drawing of HLM1540LT Li-ion Cylindrical Battery
