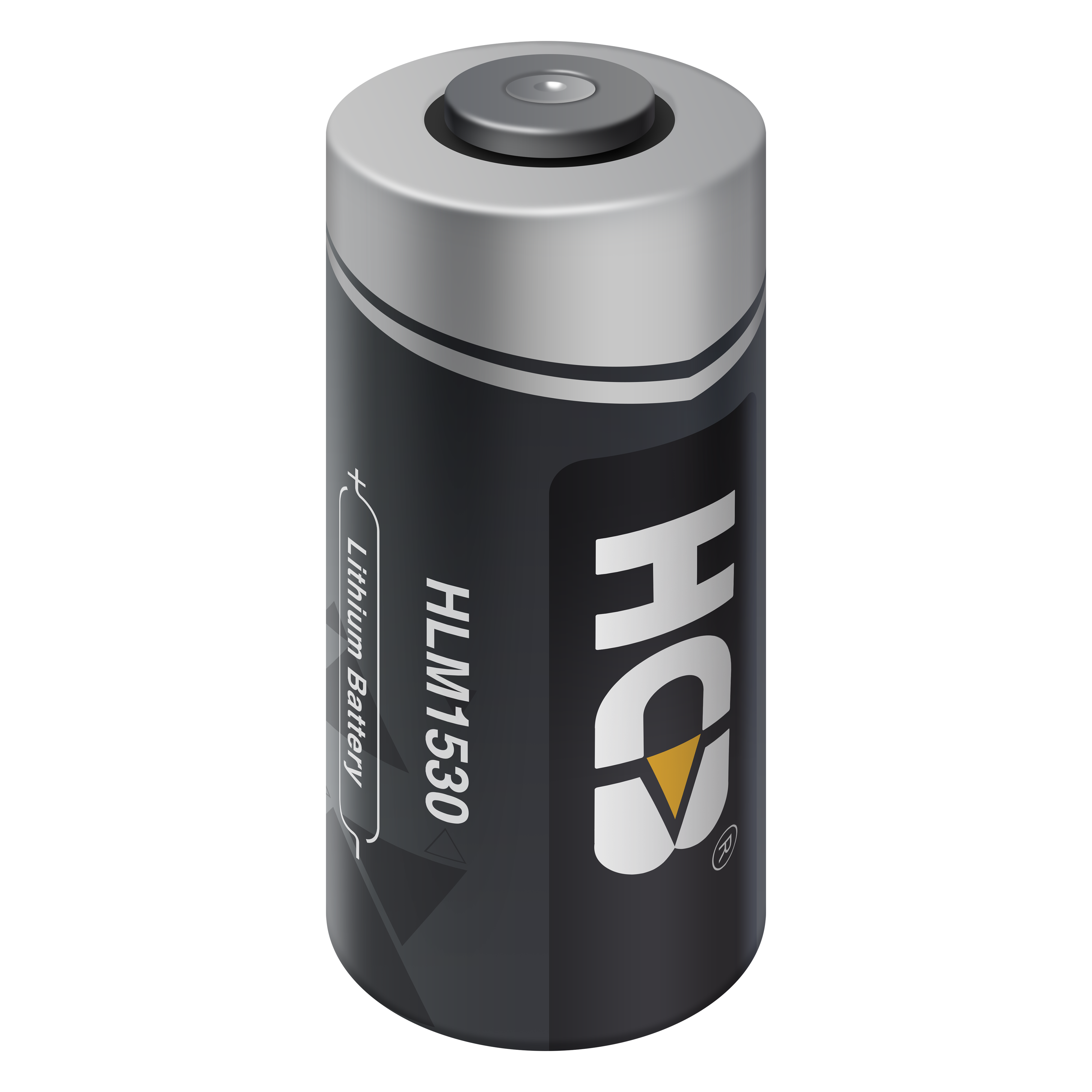

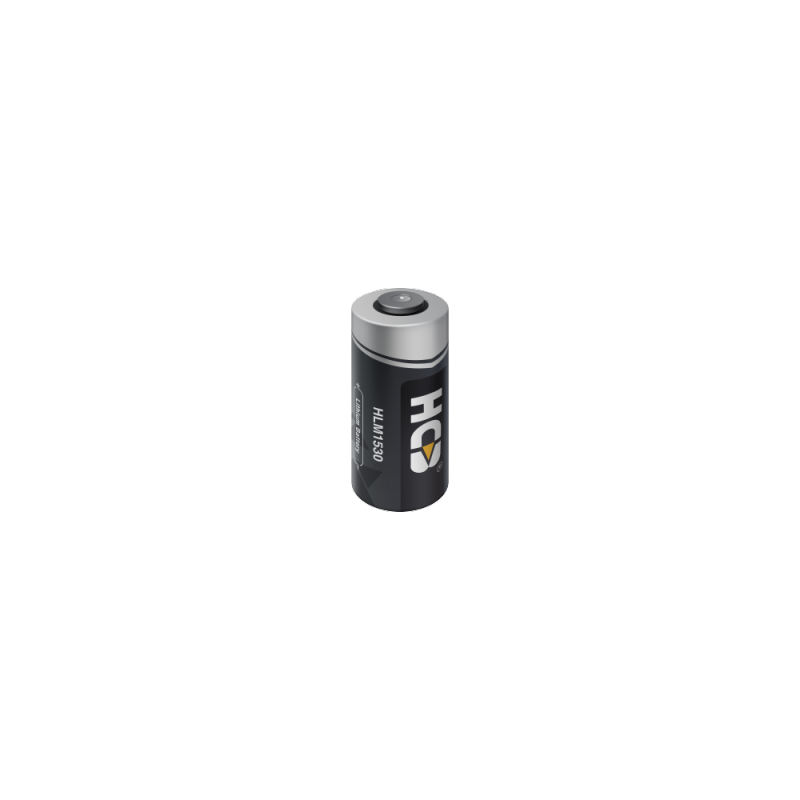

HLM1530 HLM Li-ion Cylindrical Battery

Overview
HCB offers high quality HLM1530 Li-ion cylindrical battery 3.7V LI-ion battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HLM1530 Li-ion Cylindrical Battery
Hermetic Sealed Type 220mAh 3.7V Li-ion HLM1530 Lithium Ion Battery for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HLM1530 Li-ion Cylindrical Battery
  • High energy density: 30~120Wh/kg
  • Cycle times ≥10000
  • Operating temperature range: -40°C~85°C
  • Self-discharge rate at room temperature ≤3%/monthly
Lithium ion Battery HLM1530 3.7V Lithium-ion Hermetic Sealed Type HLM1530
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HLM1530
Specification
Specification of HLM1530 Li-ion Cylindrical Battery
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 220mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 220mA
Maximum Pulse Discharge Current 440mA
Maximum Charge Current 220mA
Internal Resistance(1kHz@RT) ≤140 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~60℃
Discharge Temperature -20℃~+60℃
Drawing
Drawing of HLM1530 Li-ion Cylindrical Battery
