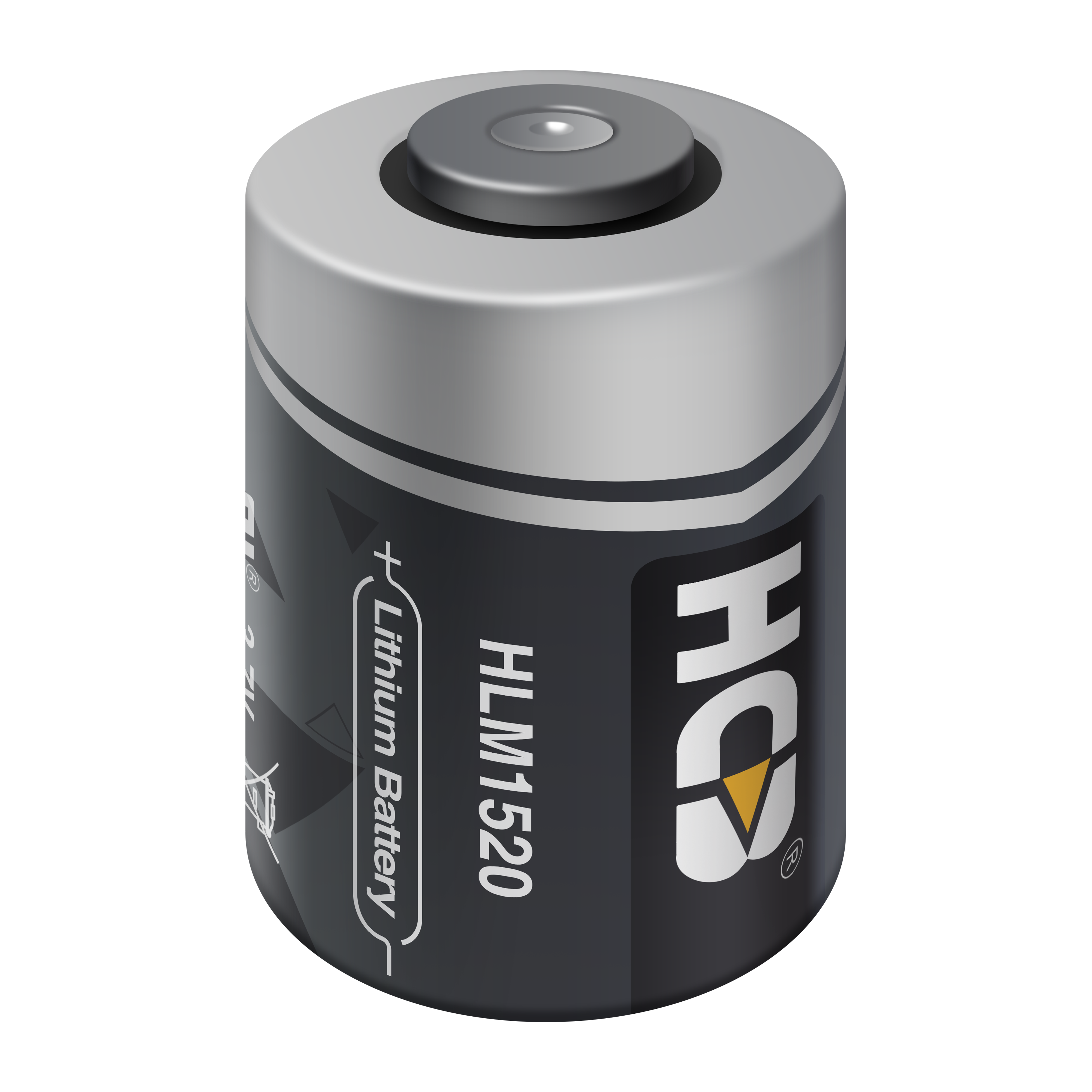

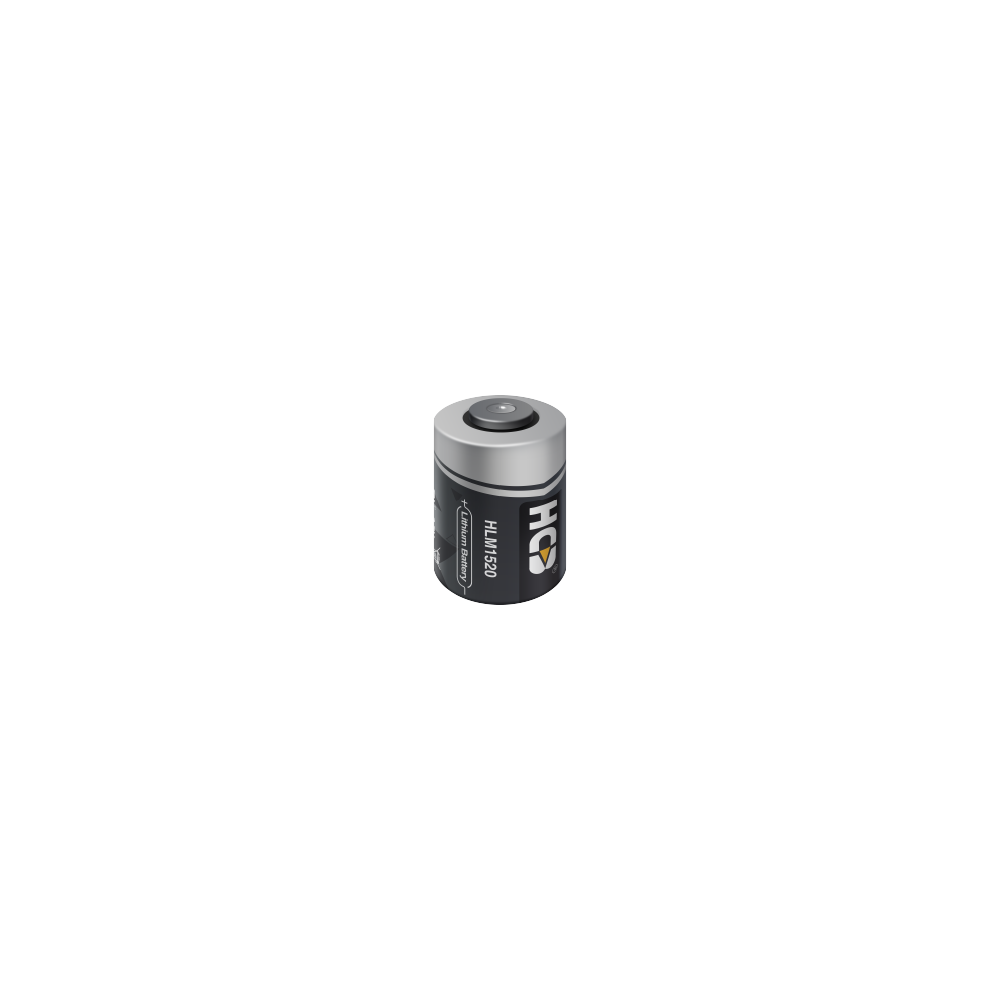

HLM1520 Li-ion Cylindrical Battery

Overview
HCB offers high quality HLM1520 Li-ion cylindrical battery 3.7V LI-ion battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HLM1520 Li-ion Cylindrical Battery
Hermetic Sealed Type 100mAh 3.7V Li-ion HLM1520 Lithium Ion Battery for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HLM1520 Li-ion Cylindrical Battery
  • High energy density: 30~120Wh/kg
  • Cycle times ≥10000
  • Operating temperature range: -40°C~85°C
  • Self-discharge rate at room temperature ≤3%/monthly
Lithium ion Battery HLM1520 3.7V Lithium-ion Hermetic Sealed Type HLM1520
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HLM1520
Specification
Specification of HLM1520 Li-ion Cylindrical Battery
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 100mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 100mA
Maximum Pulse Discharge Current  200mA
Maximum Charge Current 100mA
Internal Resistance(1kHz@RT) ≤150 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~60℃
Discharge Temperature -20℃~+60℃

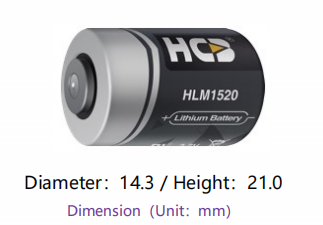

Drawing
Drawing of HLM1520 Li-ion Cylindrical Battery
