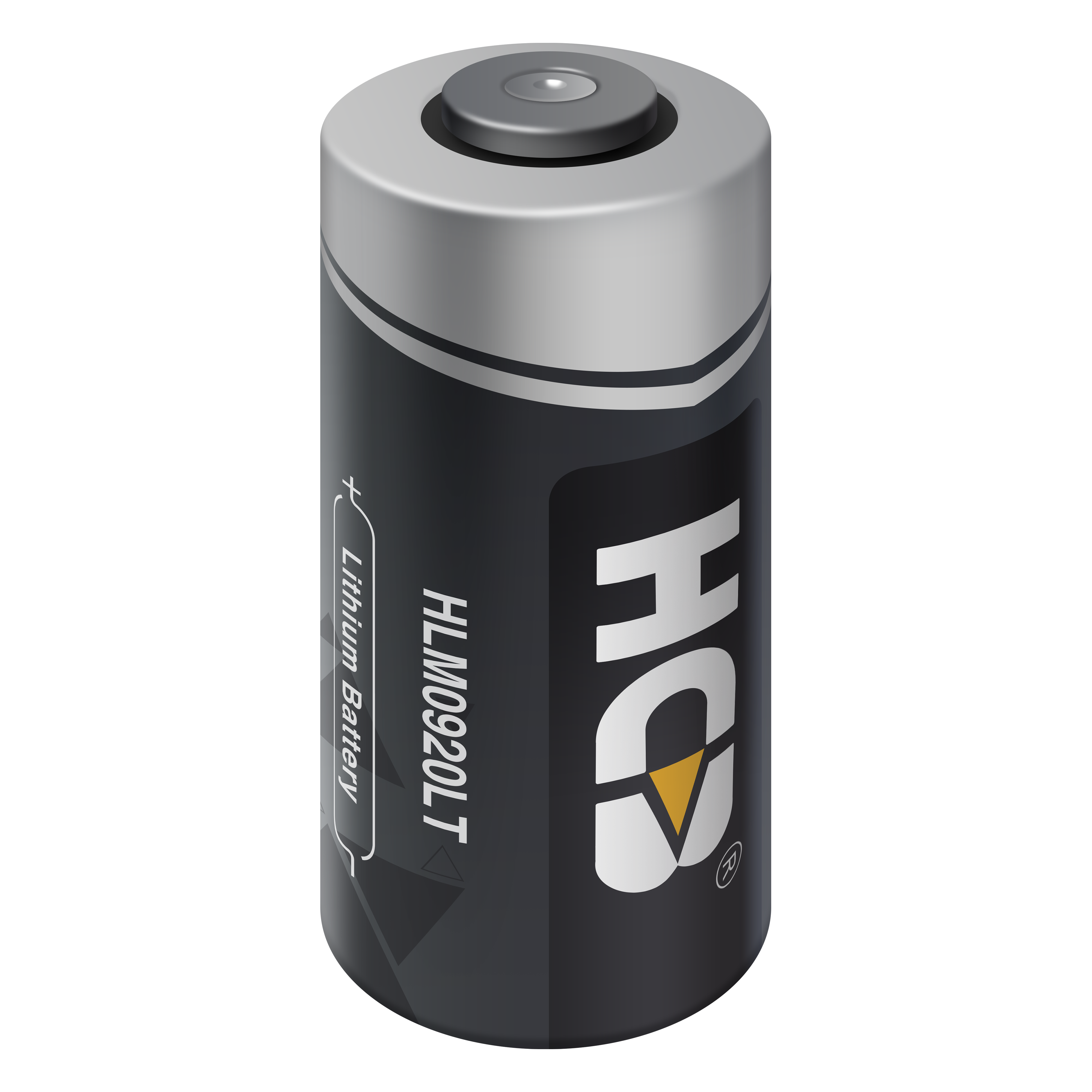

HLM0920-LT HLM Li-ion Cylindrical Battery

Overview
HCB offers high quality HLM0920LT Li-ion cylindrical battery 3.7V LI-ion battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HLM0920LT Li-ion Cylindrical Battery
Hermetic Sealed Type 30mAh 3.7V Li-ion HLM0920LT Lithium Ion Battery for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HLM0920LT Li-ion Cylindrical Battery
  • High energy density: 30~120Wh/kg
  • Cycle times ≥10000
  • Operating temperature range: -40°C~85°C
  • Self-discharge rate at room temperature ≤3%/monthly
Lithium ion Battery HLM0920LT 3.7V Lithium-ion Hermetic Sealed Type HLM0920LT
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HLM0920LT
Specification
Specification of HLM0920LT Li-ion Cylindrical Battery
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 30mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 300mA
Maximum Pulse Discharge Current(@RT)  600mA
Maximum Pulse Discharge Current(@-40℃) 150mA
Maximum Charge Current 90mA
Internal Resistance(1kHz@RT) ≤400 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature -40℃~+85℃
Discharge Temperature -40℃~+85℃
Drawing
Drawing of HLM0920LT Li-ion Cylindrical Battery
