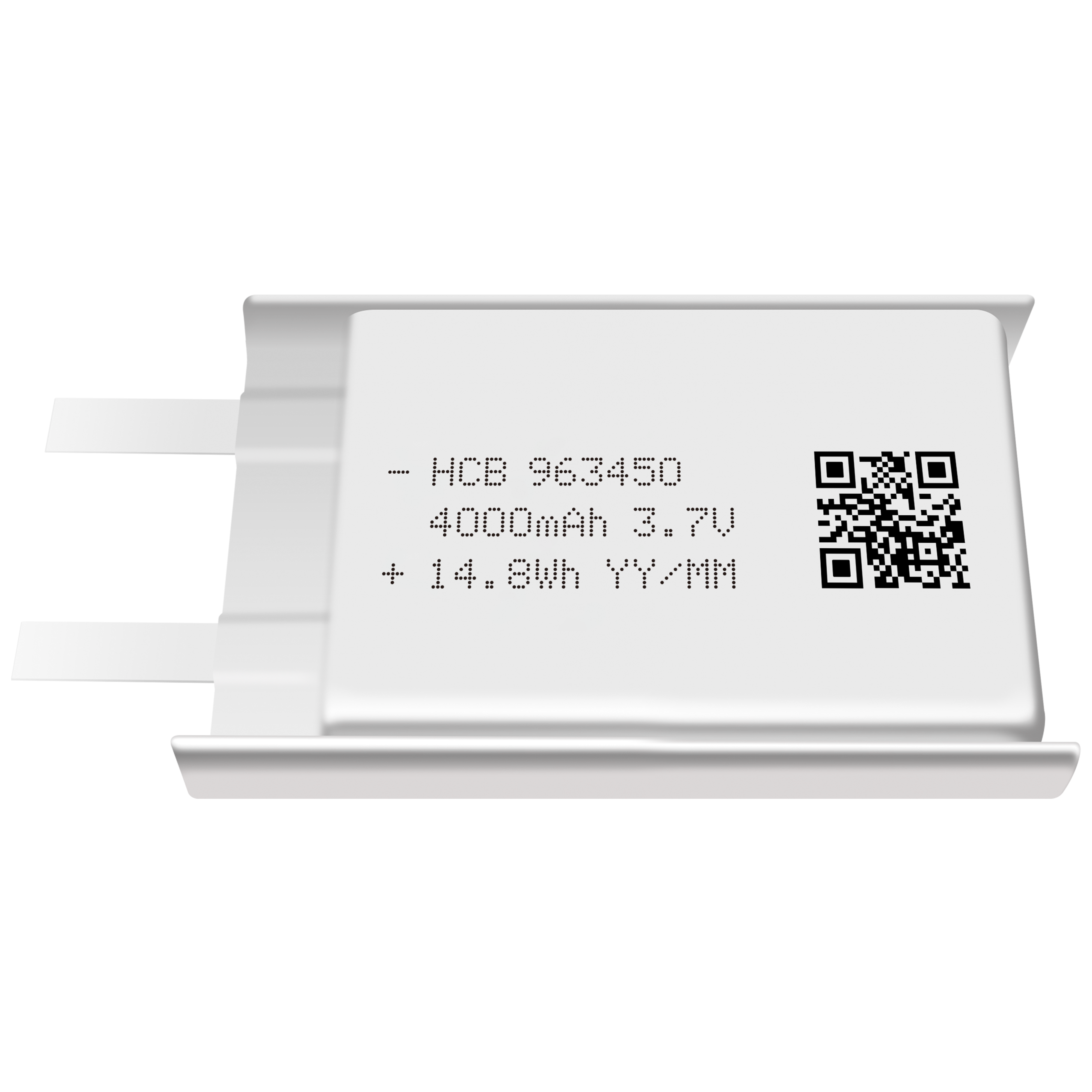

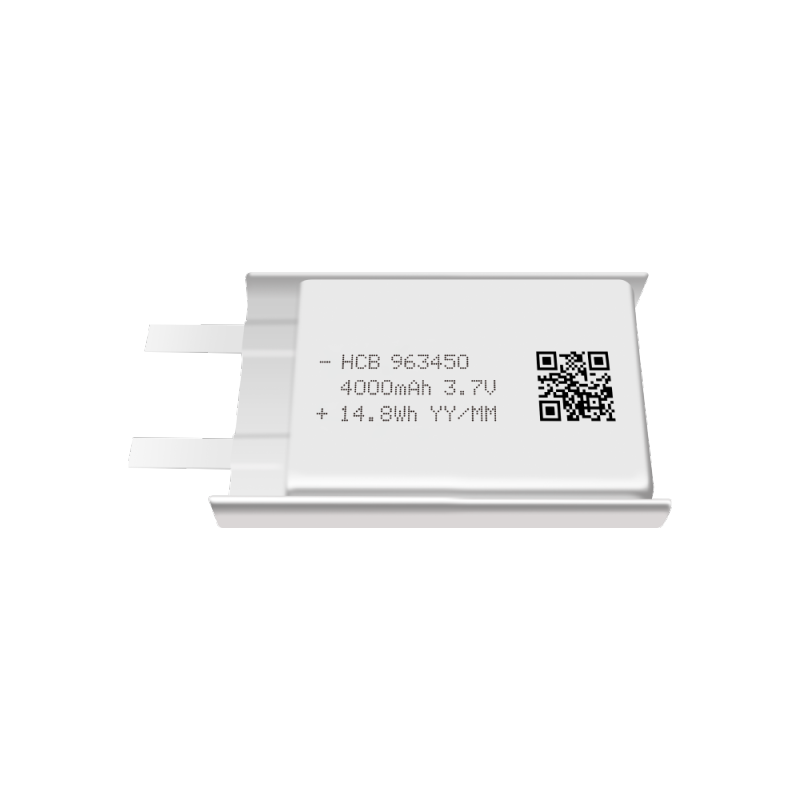

HCB963450 HCB Li-Polymer Battery

Overview
HCB offers high quality HCB963450 2000mAh Li-Polymer pouch cell 3.7V Li-Polymer battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HCB963450 Li-Polymer Pouch Cell
Pouch Cell Type 2000mAh 3.7V Li-polymer HCB963450 Lithium Polymer Pouch Cell for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HCB963450 Li-Polymer Pouch Cell
  • The energy density is up to 120Wh/kg
  • High operating voltage: 2.5~4.2V
  • Wide operating temperature range: -40°C~85°C
  • Long shelf life: the average monthly self-discharge rate ≤3% at room temperature
Lithium Polymer Battery HCB963450 3.7V Lithium-polymer Pouch Cell Type HCB963450
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HCB963450
Specification
Specification of HCB963450 Li-polymer Pouch cell
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 2000mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 2000mA
Standard Discharge Current 400mA
Maximum Charge Current 2000mA
Internal Resistance(1kHz@RT) ≤50 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃

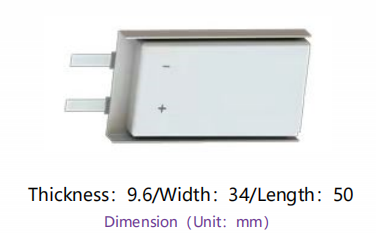

Drawing
Drawing of HCB963450 Li-polymer Pouch Cell
