HCB802030 HCB Li-Polymer Battery

Overview
HCB offers high quality HCB802030 450mAh Li-Polymer pouch cell 3.7V Li-Polymer battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HCB802030 Li-Polymer Pouch Cell
Pouch Cell Type 450mAh 3.7V Li-polymer HCB802030 Lithium Polymer Pouch Cell for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HCB802030 Li-Polymer Pouch Cell
  • The energy density is up to 120Wh/kg
  • High operating voltage: 2.5~4.2V
  • Wide operating temperature range: -40°C~85°C
  • Long shelf life: the average monthly self-discharge rate ≤3% at room temperature
Lithium Polymer Battery HCB802030 3.7V Lithium-polymer Pouch Cell Type HCB802030
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HCB802030
Specification
Specification of HCB802030 Li-polymer Pouch cell
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 450mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 450mA
Standard Discharge Current 90mA
Maximum Charge Current 450mA
Internal Resistance(1kHz@RT) ≤140 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃
Drawing

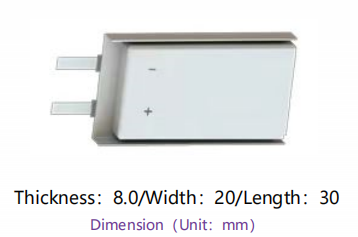

Drawing of HCB802030 Li-polymer Pouch Cell
