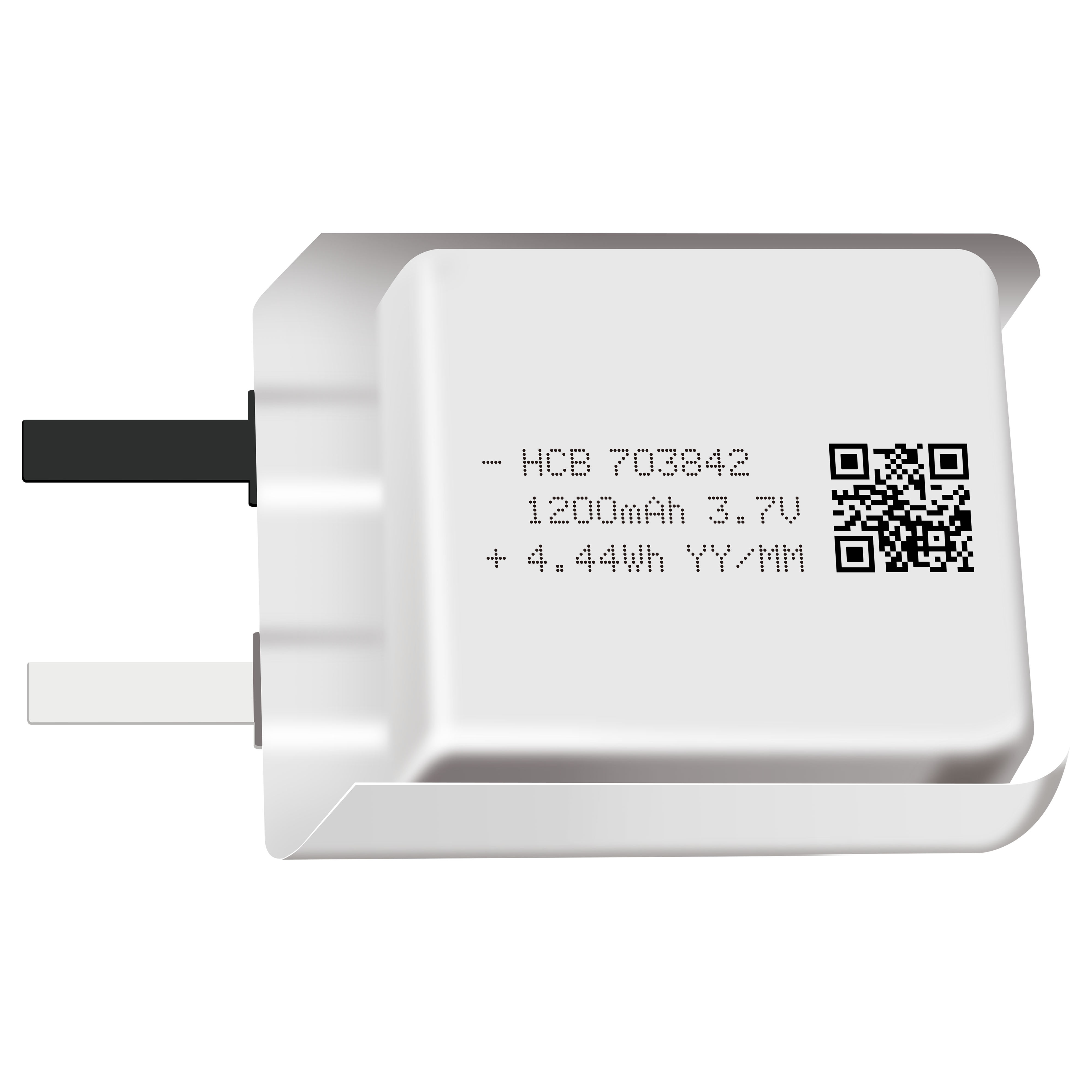

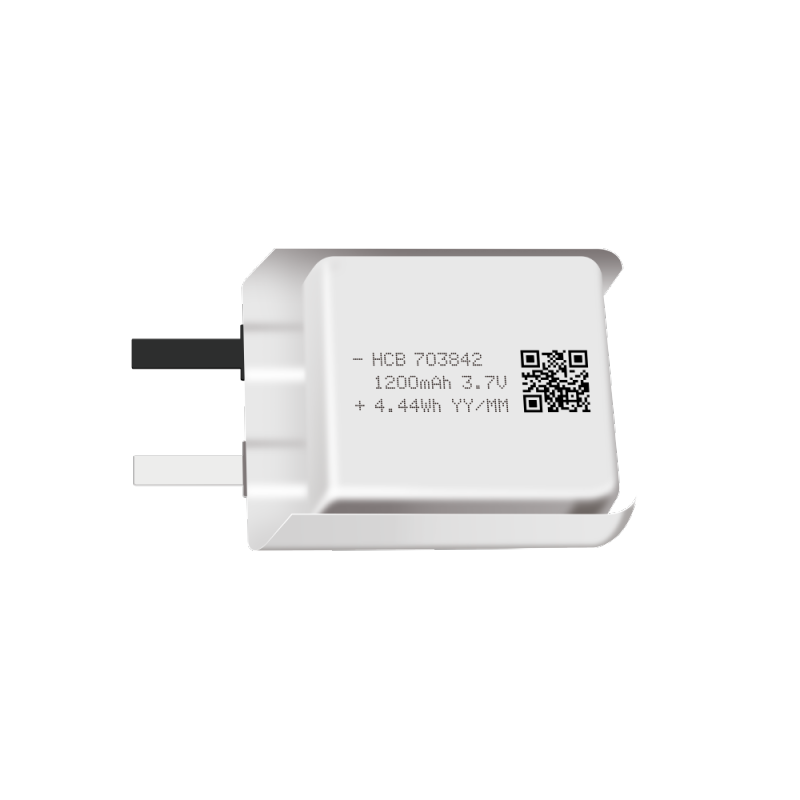

HCB703842 HCB Li-Polymer Battery

Overview
HCB offers high quality HCB703842 1200mAh Li-Polymer pouch cell 3.7V Li-Polymer battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HCB703842 Li-Polymer Pouch Cell
Pouch Cell Type 1200mAh 3.7V Li-polymer HCB703842 Lithium Polymer Pouch Cell for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HCB703842 Li-Polymer Pouch Cell
  • The energy density is up to 120Wh/kg
  • High operating voltage: 2.5~4.2V
  • Wide operating temperature range: -40°C~85°C
  • Long shelf life: the average monthly self-discharge rate ≤3% at room temperature
Lithium Polymer Battery HCB703842 3.7V Lithium-polymer Pouch Cell Type HCB703842
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HCB703842
Specification
Specification of HCB703842 Li-polymer Pouch cell
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 1200mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 1200mA
Standard Discharge Current 240mA
Maximum Charge Current 1200mA
Internal Resistance(1kHz@RT) ≤100 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃

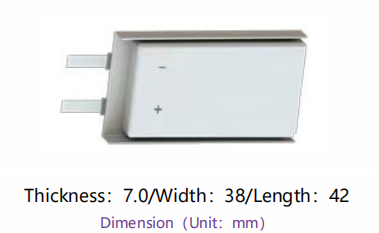

Drawing
Drawing of HCB703842 Li-polymer Pouch Cell
