HCB505050 HCB Li-Polymer Battery

Overview
HCB offers high quality HCB505050 1400mAh Li-Polymer pouch cell 3.7V Li-Polymer battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description

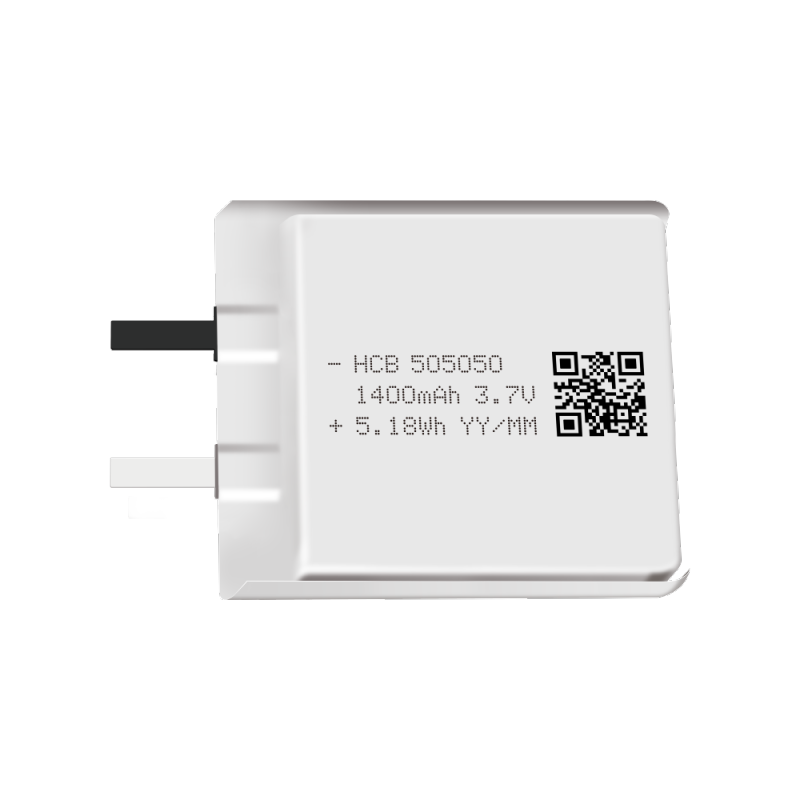

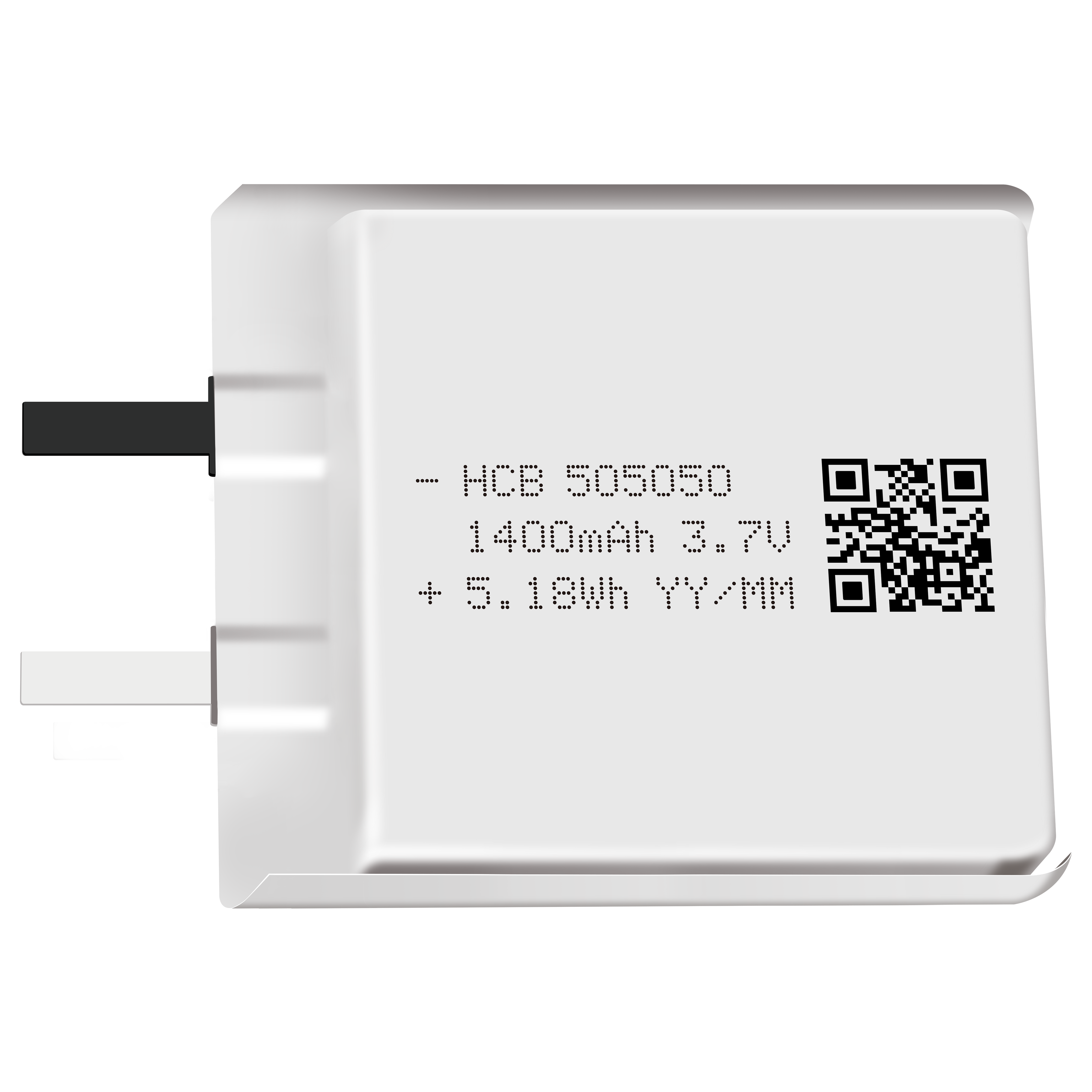

Product Details of HCB505050 Li-Polymer Pouch Cell
Pouch Cell Type 1400mAh 3.7V Li-polymer HCB505050 Lithium Polymer Pouch Cell for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HCB505050 Li-Polymer Pouch Cell
  • The energy density is up to 120Wh/kg
  • High operating voltage: 2.5~4.2V
  • Wide operating temperature range: -40°C~85°C
  • Long shelf life: the average monthly self-discharge rate ≤3% at room temperature
Lithium Polymer Battery HCB505050 3.7V Lithium-polymer Pouch Cell Type HCB505050
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HCB505050
Specification
Specification of HCB505050 Li-polymer Pouch cell
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 1400mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 1400mA
Standard Discharge Current 280mA
Maximum Charge Current 1400mA
Internal Resistance(1kHz@RT) ≤80 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃
Drawing

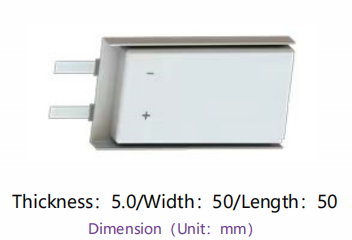

Drawing of HCB505050 Li-polymer Pouch Cell
