HCB202525 HCB Li-Polymer Battery

Overview
HCB offers high quality HCB202525 90mAh Li-Polymer pouch cell 3.7V Li-Polymer battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HCB202525 Li-Polymer Pouch Cell
Pouch Cell Type 90mAh 3.7V Li-polymer HCB202525 Lithium Polymer Pouch Cell for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HCB202525 Li-Polymer Pouch Cell
  • The energy density is up to 120Wh/kg
  • High operating voltage: 2.5~4.2V
  • Wide operating temperature range: -40°C~85°C
  • Long shelf life: the average monthly self-discharge rate ≤3% at room temperature
Lithium Polymer Battery HCB202525 3.7V Lithium-polymer Pouch Cell Type HCB202525
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HCB202525
Specification
Specification of HCB202525 Li-polymer Pouch cell
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 90mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 90mA
Standard Discharge Current 18mA
Maximum Charge Current 90mA
Internal Resistance(1kHz@RT) ≤160 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃

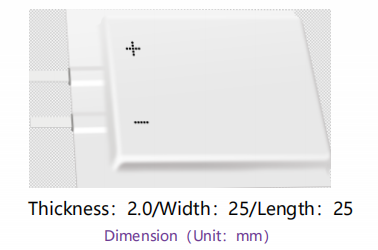

Drawing
Drawing of HCB202525 Li-polymer Pouch Cell
