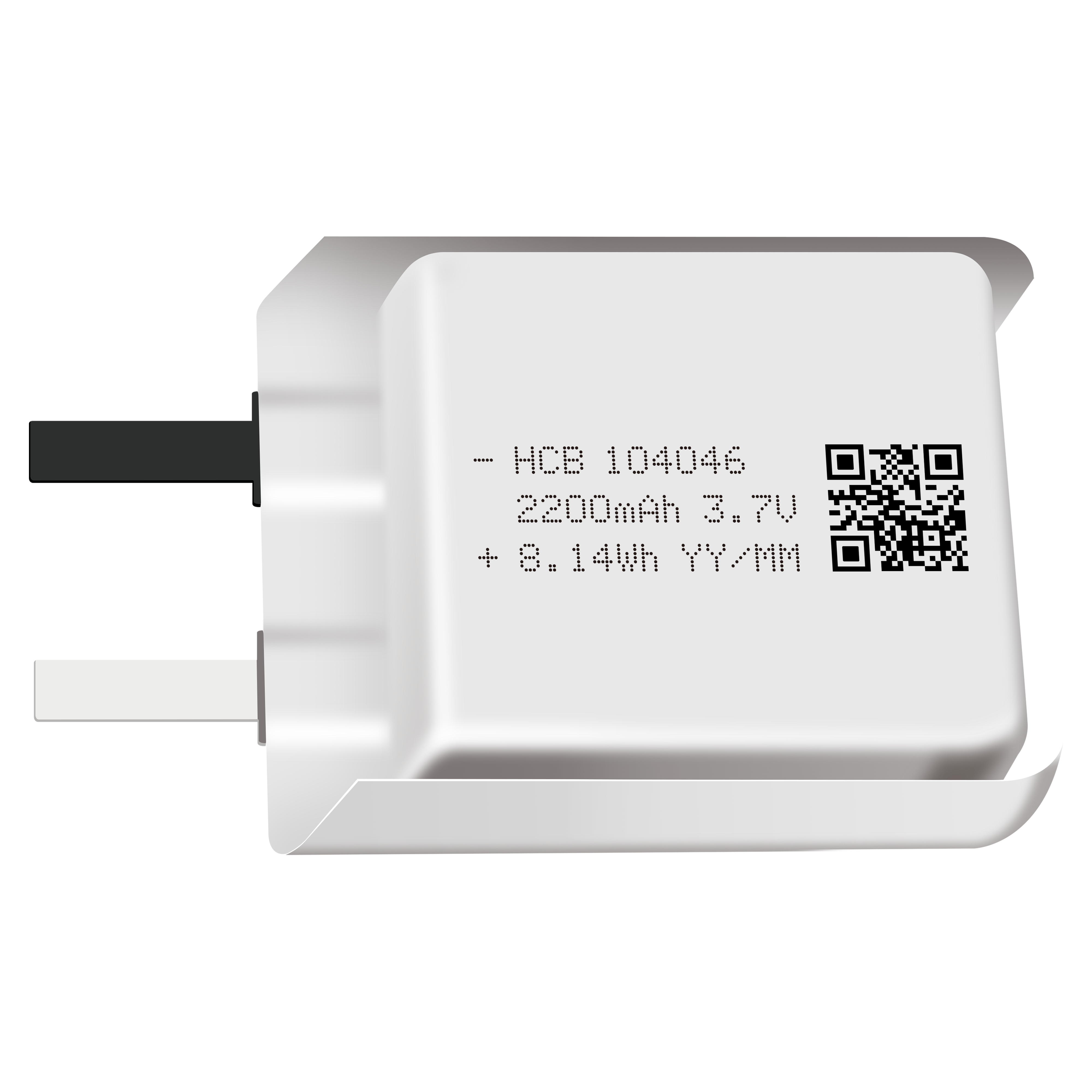

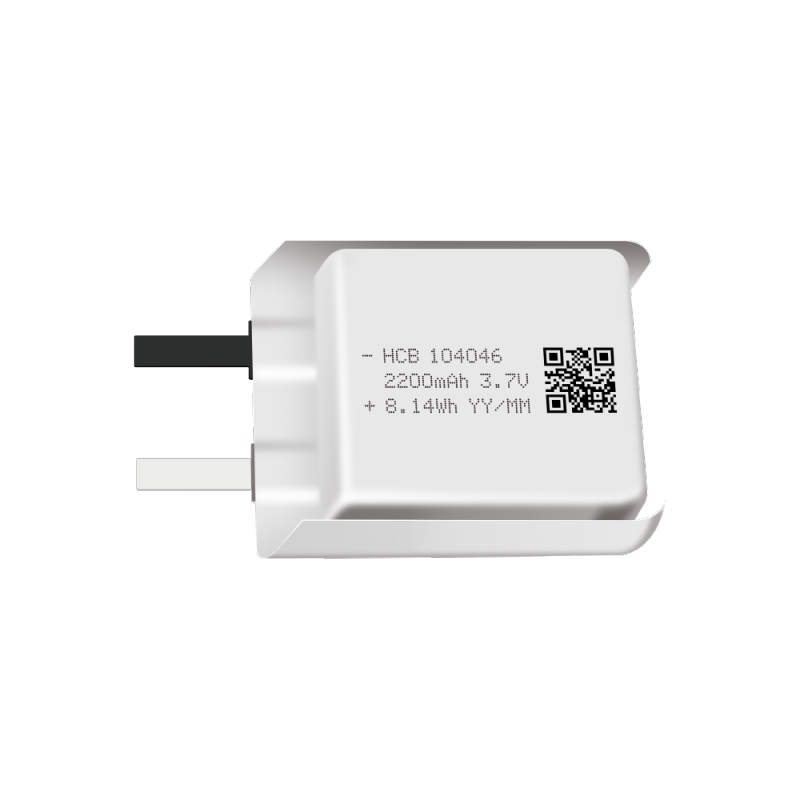

HCB104046 HCB Li-Polymer Battery

Overview
HCB offers high quality HCB104046 2200mAh Li-Polymer pouch cell 3.7V Li-Polymer battery to clients all over the world.
It can be used for automotive electronics, tracking, consumer electronics, medical devices. Get Our Catalog Now!
Description Specification Drawing
Description
Product Details of HCB104046 Li-Polymer Pouch Cell
Pouch Cell Type 2200mAh 3.7V Li-polymer HCB104046 Lithium Polymer Pouch Cell for automotive electronics, tracking, consumer electronics, medical devices.
Advantage of HCB104046 Li-Polymer Pouch Cell
  • The energy density is up to 120Wh/kg
  • High operating voltage: 2.5~4.2V
  • Wide operating temperature range: -40°C~85°C
  • Long shelf life: the average monthly self-discharge rate ≤3% at room temperature
Lithium Polymer Battery HCB104046 3.7V Lithium-polymer Pouch Cell Type HCB104046
Place of Origin PRC
Brand Name HCB LITHIUM BATTERY
Certification UN/CE/UL
Model Number HCB104046
Specification
Specification of HCB104046 Li-polymer Pouch cell
Characteristics Nominal voltage 3.7V
Electrical Performance Parameters Nominal capacity 2200mAh
Discharge Cut-off Voltage 2.5V
Charge Cut-off Voltage 4.2V
Cycle life(0.2C 100%DOD) ≥500
Maximum Continuous Discharge Current 2200mA
Standard Discharge Current 440mA
Maximum Charge Current 2200mA
Internal Resistance(1kHz@RT) ≤40 mΩ
Storage Environment(Recommended)  25±3°C 65±20% RH
Operating Temperature  Charge Temperature 0℃~45℃
Discharge Temperature -20℃~+60℃
Drawing

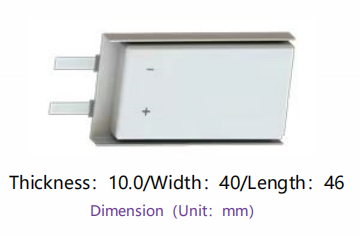

Drawing of HCB104046 Li-polymer Pouch Cell
