| Place of Origin | PRC |
| Brand Name | HCB PRIMARY LITHIUM BATTERY |
| Certification | UN/CE/UL |

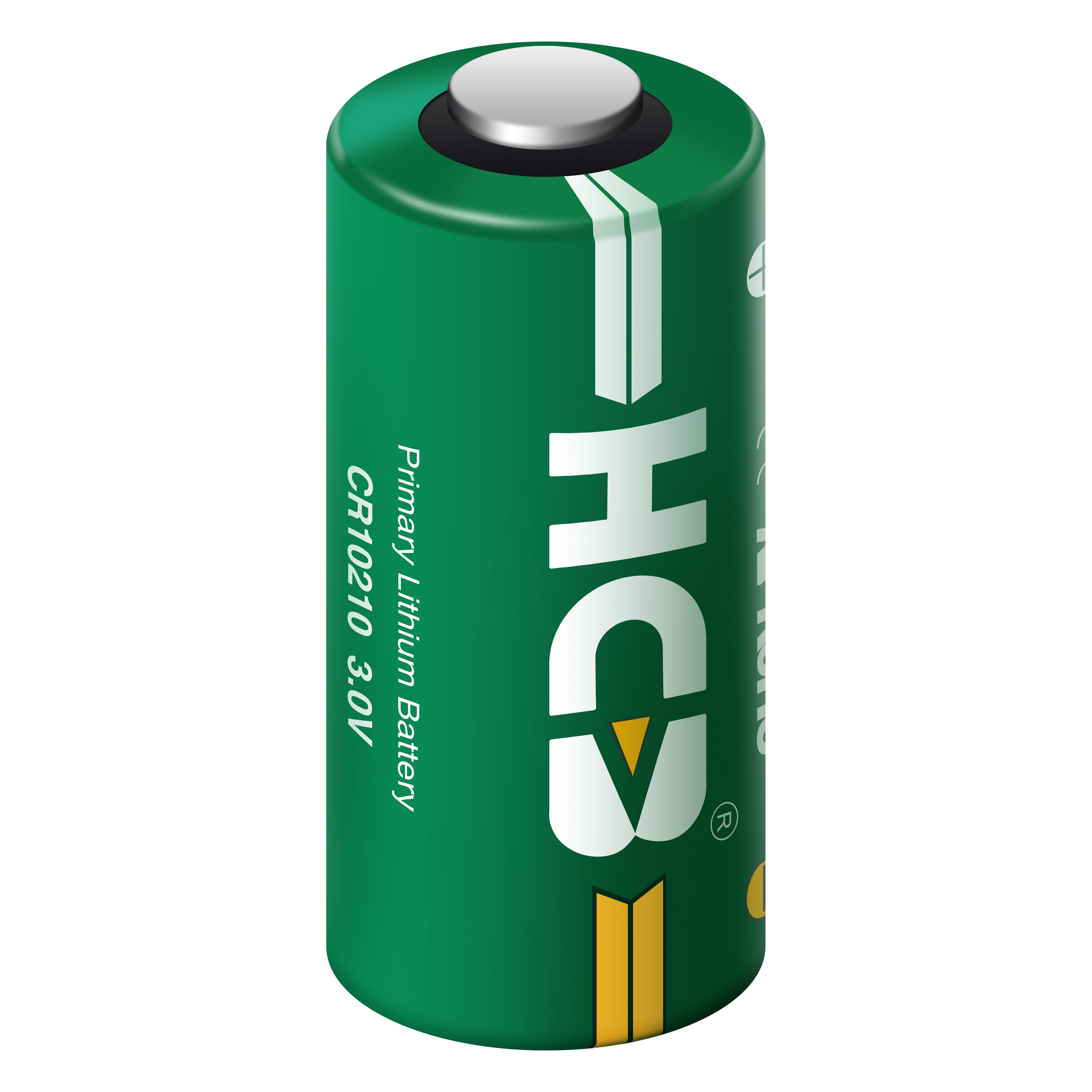

| Model Number | CR10210 |
| Characteristics | Open circuit voltage (at 25°C) | ≥3.10V |
| Electrical characteristics | Nominal capacity | 300mAh |
| (At +25°C, battery discharged at continuous current 0.5mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) | (At +25°C, battery discharged at continuous current 0.5mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) | |
| Maximum continuous current | 50mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity. ) | (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity. ) | |
| Maximum pulse discharge current | 100mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. Discharge capacity of the battery will change with the pulse characteristics and ambient temperature as well as storage situation. For more detail, please inquiry HCB.) | (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. Discharge capacity of the battery will change with the pulse characteristics and ambient temperature as well as storage situation. For more detail, please inquiry HCB.) | |
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -40°C~+85°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. Consult HCB.) | (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. Consult HCB.) | |

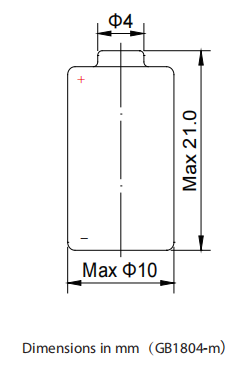

| Physical characteristics | Diameter | Max 10.0mm |
| Height | Max 21.0mm | |
| Typical weight | 5.5g | |
| Li metal content | 0.11g |
