| Place of Origin | PRC |
| Brand Name | HCB PRIMARY LITHIUM BATTERY |
| Certification | UN/CE/UL |

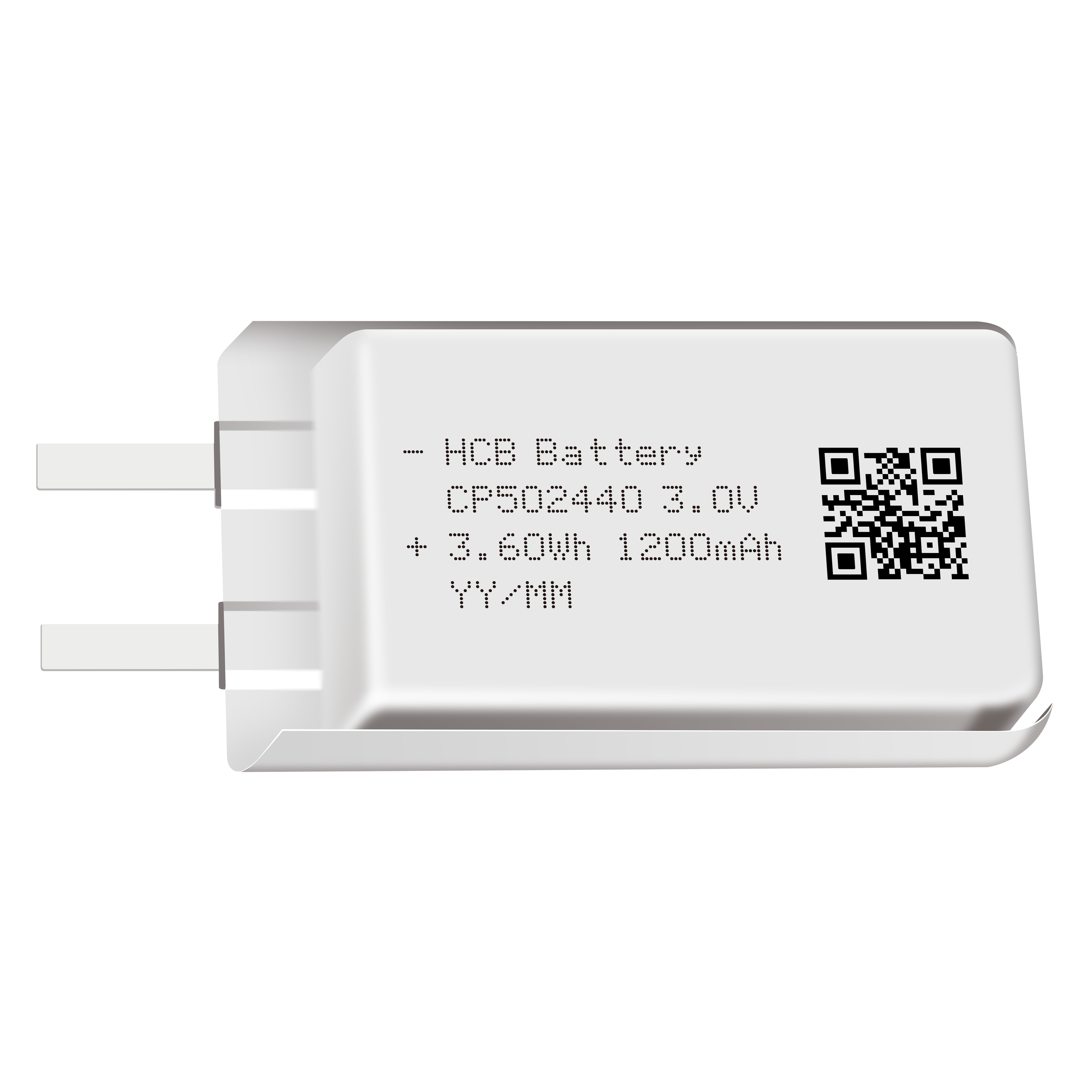

| Model Number | CP502440 |
| Characteristics | Open circuit voltage (at 25°C) | ≥3.10V |
| Electrical characteristics | Nominal capacity | 1200mAh |
| (At +25°C, battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) | (At +25°C, battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) | |
| Maximum continuous current | 600mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity. ) | (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity. ) | |
| Maximum pulse discharge current | 1000mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. Discharge capacity of the battery will change with the pulse characteristics and ambient temperature as well as storage situation. For more detail, please inquiry HCB) | (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. Discharge capacity of the battery will change with the pulse characteristics and ambient temperature as well as storage situation. For more detail, please inquiry HCB) | |
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -40°C~+70°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. Consult HCB.) | (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. Consult HCB.) | |

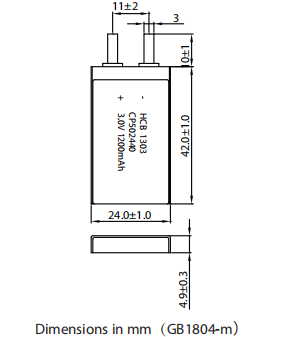

| Physical characteristics | Width | 24.0±1.0mm |
| Height | 42.0±1.0mm | |
| Thickness | 4.9±0.3mm | |
| Typical weight | 9.0g | |
| Li metal content | 0.32g |
